Perpendicular

Use this to ...

• Make two lines have a 90-degree angle between them.
• Play the video to learn how to add perpendicular constraints to profiles. Do not adjust your volume; there is no sound associated with this video.

Key Points

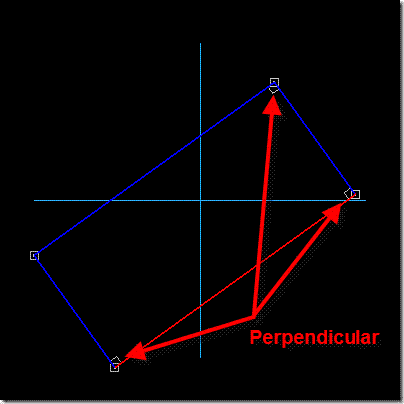

• The Perpendicular constraint displays as a small 90-degree angle symbol at inside the corner of the two lines.

Prerequisites

• Solid Edge must be in the Profile mode. Profile mode is automatically activated when creating a sketch feature or creating a profile for a feature.

Process: Creating a Perpendicular Relationship

1. Click Perpendicular on the Features and Relationships toolbar.

2. In the Graphics window, pick the first line.

3. Pick the second line. The first line moves perpendicular to the second line and a small 90-degree angle symbol displays inside the corner.
