Changing Curves to Construction

Use this to ...

• Convert curves in a profile to Construction.
• Convert reference curves back to regular curves.
• Play the video to see a demonstration of how to create curves and change them to construction curves. Do not adjust your volume; there is no sound associated with this video.

Key Points

• Construction curves are not included as part of the feature.
• These curves assist you when lining up other curves in the profile.

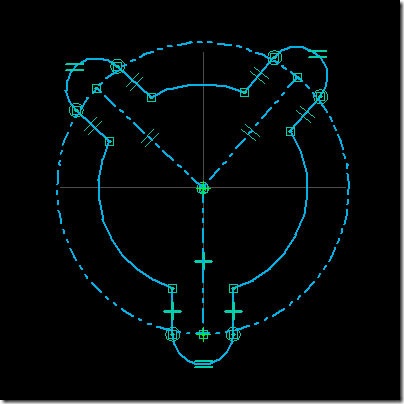

• When a curve converts to a construction, the line style changes from solid to phantom (dashed).

Prerequisites

• You must be in either the Sketch or Profile mode.

Process: Creating a Construction Curve

1. Click Construction on the Draw toolbar.

2. In the Graphics window, pick a curve. The normal curve converts to a construction curve.

Process: Converting a Construction Curve

1. Click Construction on the Draw toolbar.

2. In the Graphics window, pick a construction curve. The construction curve converts to a normal curve.
