Creating Coincident Planes

Creating Coincident Planes

clip_image001

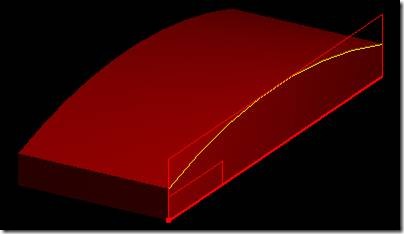

clip_image003


clip_image004

Path: Features | Reference Planes | Coincident

clip_image005

clip_image006


clip_image007

Use this to ...

Create a reference plane in the same space and orientation as the selected plane or planar face (parallel with a zero offset).

The following video demonstrates how to create a reference plane that is coincident to a face. Do not adjust your volume, there is no sound associated with this video. clip_image008

clip_image009

Key Points

The selected face must be planar (flat).

clip_image010

Prerequisites

A planar face or reference plane must exist in the document.

clip_image011

Process: Creating Coincident Planes from a Planar Face

1. clip_image006[1] Click Coincident Plane from the Coincident Plane fly-out on the Features toolbar.

clip_image012

2. Highlight the reference plane or planar face in the Graphics window. Solid Edge locates an edge to be the horizontal direction.

clip_image014

3. If required, orient the horizontal and vertical direction by using the keyboard keys. n = Next horizontal edge b = Back to previous edge t = Toggle horizontal and vertical to opposite corner f = Flip horizontal and vertical to opposite side.

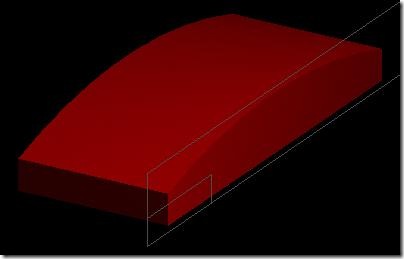

4. Pick in the Graphics window to create the plane. clip_image016

5. If you wish to try this option, open coincident_planes.par. clip_image001[1]

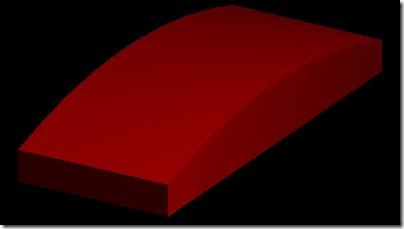

clip_image018

  • offset a specified distance from a selected plane or planar face.
  • The following video demonstrates how to create a reference plane parallel to a planar face, and a plane parallel to an existing plane, through a point. Do not adjust your volume, there is no sound associated with this video. clip_image008[1]

clip_image009[1]

Key Points

  • Creates a parallel plane at a specified distance.
  • Creates a parallel plane through a specified key point.

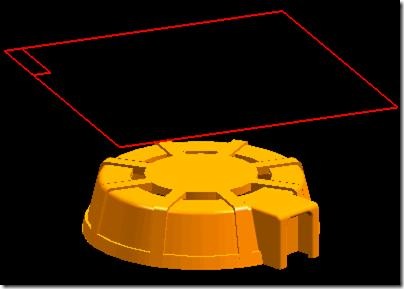

Process: Creating a Parallel Plane. clip_image020

1. clip_image021 Click Parallel Plane from the Plane fly-out on the Features toolbar. clip_image001[2]clip_image012[1]

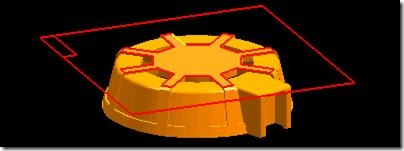

2. Highlight the reference plane or planar face in the Graphics window. clip_image001[3]clip_image023

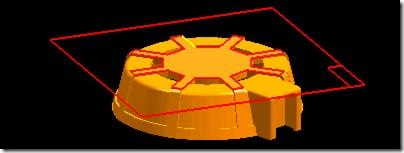

3. If required, orient the horizontal and vertical direction of the reference plane by using the keyboard keys. n = Next horizontal edge b = Back to previous edge t = Toggle horizontal and vertical to opposite corner f = Flip horizontal and vertical to opposite side. clip_image001[4]clip_image001[5]clip_image025

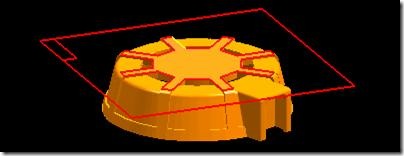

clip_image026

4. In the Graphics window, pick to establish the base plane.

5. From the ribbon bar, select the keypoints or type in an offset distance. clip_image001[6]clip_image027

6. In the Graphics window, select the keypoint location or the side to place the parallel plane.

7. If you wish to try this option, open parallel_planes.par. clip_image001[7]


clip_image030

Tips

  • When you dynamically position the parallel plane, you can see what the exact offset is by looking on the ribbon bar.
