Arrays and Mirrors in Solid edge

Arrays and Mirrors

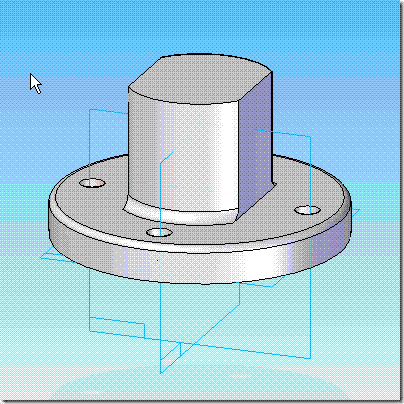

After you define the basic shape of the part, the next step is to define any patterns that can be created. Patterns are a big time saver because they allow you to create several copies of a feature in one step. The pattern creates a parametric copy of a feature and places them in a rectangular or circular orientation. This is intended to capture design intent by keeping all features the same size as the original. Another big time saver is mirroring. If you are creating a symmetrical part, simply model half of the part. Then use the mirror it to create the other half. This can greatly reduce the number of features required for the part and minimizes the amount of information in each profile.

Treatment Features

Treatment features consist of items like drafts, rounds, and chamfers. These features are usually created near the end of the modeling process. If you create them near the end or the process, they are easier to delete or modify without affecting previously created features. Keep in mind that there may be times when you will need to place a treatment feature a little higher in the list.

Saving

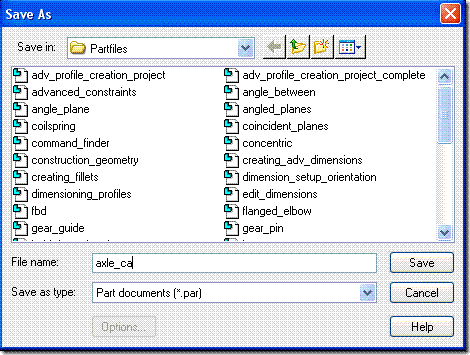

Saving the model frequently can prevent a lot of headaches down the line. We recommend that you save the part often to avoid loss of data. Sure, it reduces the amount of Undo capability, but it beats having to re-create several hours of work that was lost due to a system crash.
